CDM855

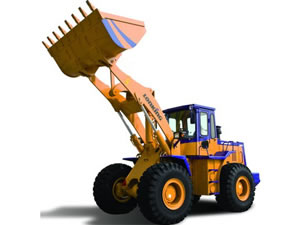

Wheel Loader CDM855

Large loader CDM855 is characterized:
Powerful WeiChai Engine.
Long Wheelbase Chassis.
Heavy Load Driving System.
Anti-abrasion Integral Cutting Edge.

Description:
wheel loader CDM855 is of high dumping height and large dumping distance, and its transmission box is Lonking self-made planet type. The overall structure design of the loader is strengthened and optimized, and the transmission shaft is designed with end tooth structure, which enables larger drive torque. Furthermore, the wide view cab ensures the work safety.

Parameter of Wheel Loader

Model Number CDM855
Bucket Capacity 3m3
Rated Load 5000kg
Rated Power 162kw
Operating Weight 16600kg
Traction Force (kN):  150±3
Breakout Force (kN):                 170±3
Travel Speed (km/h):
                          Forward 11.5 36.0
                          Reverse 16.0 12.5
Engine:  Weichai WD10G220E21
Peak Torque (Nm/rpm):
Starting Voltage (V):
Drive Train:
Torque Converter: Single-stage, Single-turbine,3-element
Torque Ratio:
Transmission: Planetary power shift Transmission
Gear: 2F/1R
Pressure of Transmission (mpa):
Main Reducer: Spiral bevel,1-stage Reduction
Final Reducer: Planetary power shift Transmission
Tire: 23.5-25 L-3 16PR
Brake System:
Service Brake: Single Circuit Caliper, Dry Brake
Parking & Emergency Brake: Air Actuated Caliper Brake
Emergency Brake:             Air Actuated Caliper Brake
Steering system type: Hydraulic Load Sensing
Steering Pump:             Gear Pump
