CDM856D

CDM856D

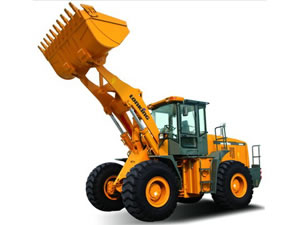

Wheel loader CDM856D is highlighted with
Powerful DF Cummins Engine.
Pilot Control System.
Automatic Leveling.
Convenient Maintenance.

Description:
Wheel loader CDM856D owns efficient hydraulic system which is stable and energy-saving, The whole casting driving axle shell ensures high strength and rigidity.Due to the loader's high efficiency, burdens on driver are greatly alleviated.

Parameter

Model Number CDM856D
Bucket Capacity 3m3
Rated Load 5000kg
Rated Power 160kw
Operating Weight 17300kg
Traction Force (kN):  155±3
Breakout Force (kN):                 170±3
Engine:  DF CUMMINS 6CTA8.3-C215
Peak Torque (Nm/rpm):
Starting Voltage (V):
Drive Train:
Torque Converter: Single-stage, Single-turbine,3-element
Torque Ratio:
Transmission: Planetary power shift Transmission
Gear: 2F/1R
Pressure of Transmission (mpa):
Main Reducer:
Final Reducer:
Tire: 23.5-25 L-3 16PR
Brake System:
Service Brake: Duo Circuit Caliper, Dry Brake
Setting Pressure (mpa):
Parking & Emergency Brake:
Steering system type: Hydraulic Load Sensing
