CDM855E

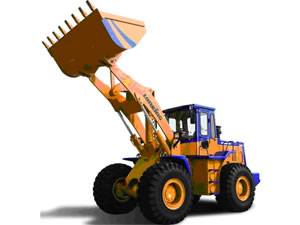

Wheel Loader CDM855E

Large loader CDM 855E features:
Automatic Leveling
Powerful WeiChai Engine
Pilot Control System
Convenient Maintenance

Wheel loader CDM855E is featured by:
1. High dumping height and large dumping distance.
2. Lonking self-made planet type transmissions.
3. Strengthened and optimized structure design.
4. Electro-hydraulic shift control.
5. Transmission shaft with end tooth structure.
6. Double pump confluence.
7. Hydraulic limit and emergency steering system.
8. Wide view cab: capacious and bright.

Parameter of Wheel Loader

Model Number CDM855E
Bucket Capacity 3m3
Rated Load 5000kg
Rated Power 162kw
Operating Weight 16600kg
Traction Force (kN):  155±3
Breakout Force (kN):                 170±3
Travel Speed (km/h):
                          Forward 11.5 36.0
                          Reverse 16.0
Engine:  Weichai WD10G220E11
Peak Torque (Nm/rpm):
Starting Voltage (V):
Drive Train:
Torque Converter: Single-stage, Single-turbine,3-element
Torque Ratio:
Transmission: Planetary power shift Transmission
Gear: 2F/1R
Pressure of Transmission (mpa):
Main Reducer:
Final Reducer:
Tire: 23.5-25 L-3 16PR
Brake System:
Service Brake: Single Circuit Caliper, Dry Brake
Setting Pressure (mpa):
Parking & Emergency Brake: Air Actuated Caliper Brake
Steering system type: Hydraulic Load Sensing
System Voltage (V):                                 24
Battery (2 in series) (ah):            120
Lamp Voltage (V):                     24
