CDM860

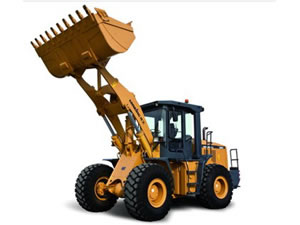

Wheel loader CDM860

Wheel loader CDM860 features:
Powerful Weichai Engine.
Heavy Load Driving System.
Pilot Control System.
Automatic Leveling.

Parameter of Wheel loader

Model Number CDM860
Bucket Capacity 3.5m3
Rated Load 6000kg
Rated Power 175kw
Operating Weight 21500kg
Traction Force (kN):  172±3
Breakout Force (kN):                 200±3
Engine:  WEICHAI WD10G240E11
Peak Torque (Nm/rpm):
Starting Voltage (V):
Drive Train:
Torque Converter: Single-stage, Single-turbine,3-element
Torque Ratio:
Transmission: Countershaft powershift Transmission
Gear: 4F/4R
Pressure of Transmission (mpa):
Main Reducer: Spiral bevel,1-stage Reduction
Final Reducer: Planetary Reduction
Tire: 23.5-25 L-3 20PR
Brake System:
Service Brake: Duo Circuit Caliper, Dry Brake
Setting Pressure (mpa):
Parking & Emergency Brake: Air Actuated Caliper Brake
Steering system type: Hydraulic Load Sensing
