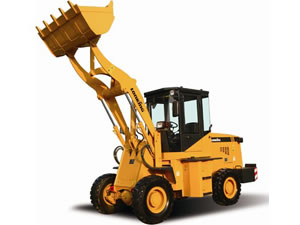

Wheel loader CDM812D features:
Powerful Changchai Engine
Hydraulic Transmission&Torque Converter
Reliable Powertrain
Optimized Structure Design
Parameter
| Model Number | CDM812D | |
| Bucket Capacity | 0.55m3 | |
| Rated Load | 1200kg | |
| Rated Power | 38kw | |
| Operating Weight | 4200kg | |
| Traction Force (kN): | 31 | |
| Breakout Force (kN): | 36 | |
| Travel Speed (km/h): | Ⅰ | Ⅱ |
| Forward | 8.3 | 20.8 |
| Reverse | 7.7 | 19.0 |
| Engine: | Changchai 490B | |
| Peak Torque (Nm/rpm): | 150/1800 | |
| Starting Voltage (V): | 24 | |
| Drive Train: | ||
| Torque Converter: | Single-stage, Single-turbine,3-element | |
| Torque Ratio: | 3.7 | |
| Transmission: | Fixed Shaft Hydraulic Shift Spur Gear | |
| Gear: | 2F/2R | |
| Pressure of Transmission (mpa): | 1.2-1.5 | |
| Main Reducer: | Spiral bevel, 1-stage Reduction | |
| Final Reducer: | Planetary Reduction | |
| Tire: | ||
| Brake System: | ||
| Service Brake: | ||
| Setting Pressure (mpa): | ||
| Parking & Emergency Brake: | Flexible Shaft Controlled Caliper | |
| Steering system type: | Hydraulic Load Sensing | |
