Features of the Compact Loader:
Powerful Engine
Automatic Leveling

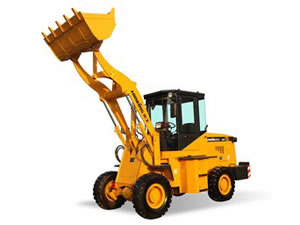

Parameter of Compact Wheel Loader
| Model Number | CDM810D | |
| Bucket Capacity | 0.5m3 | |
| Rated Load | 1000kg | |
| Rated Power | 34kw | |
| Operating Weight | 4200kg | |
| Traction Force (kN) | 31 | |
| Breakout Force (kN) | 36 | |
| Travel Speed (km/h) | Ⅰ | Ⅱ |
| Forward | 8.3 | 20.8 |
| Reverse | 7.7 | 19.0 |
| Engine | Changchai 490B | |
| Peak Torque (Nm/rpm) | 150/1800 | |
| Starting Voltage (V) | 24 | |
| Drive Train | ||
| Torque Converter | Single-stage, Single-turbine,3-element | |
| Torque Ratio | 3.7 | |
| Transmission | Fixed Shaft Hydraulic Shift Spur Gear | |
| Gear: | 2F/2R | |
| Pressure of Transmission (mpa): | 1.2-1.5 | |
| Main Reducer: | Spiral bevel, 1-stage Reduction | |
| Final Reducer: | Planetary Reduction | |
| Tire: | 11.00-16 | |
| Brake System: | Air drive, four wheel brake (dry) | |
| Service Brake: | Air drive, four wheel brake (dry) | |
| Setting Pressure (mpa): | 0.78 | |
| Parking & Emergency Brake: | Flexible Shaft Controlled Caliper | |
| Steering system type: | Hydraulic Load Sensing | |
