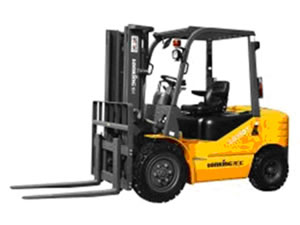

Overall Data of forklift LG35DT
Parameter
| Model Number | LG35DT |
| Power Type | Diesel |
| Load capacity | 3500kg |
| Overall L×H×W | 3788×2177×1225mm |
| Battery Capacity | 42kw |
| Engine | XINCHAI A495BPG |
| Optional | ISUZU 4JG2 |
| Load center(mm) | 500 |
| STD Max lifting height(mm) | 3000 |
| Free lift height(mm) | 188 |
| Fork size(mm) | 1070×125×50 |
| Mast tilt angle(deg) | 6/12 |
| Front overhang (mm) | 493 |
| Rear overhang (mm) | 525 |
| Min. turning radius (mm) | 2450 |
| Min. intersecting aisle(mm) | |
| Speed (load/unload) | |
| Max. Traveling speed (km/h) | 19/20 |
| Max. lifting speed (mm/s): | 430/450 |
| Max gradient (load/unload) (%): | 20 |
| Dead weight (kg) | 4650 |
| Tread (front/rear) (mm) | 1000/980 |
| Axle distance (mm) | 1700 |
| Min ground clearance | |
| Mast(mm) | 132 |
| Frame(mm) | 150 |
