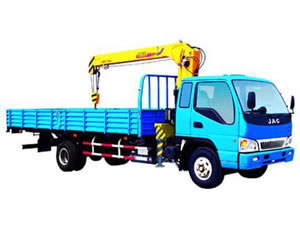

| Model | SQ3.2SK1Q/SQ3.2SK2Q | Unit | |||
| Max Lifting Capacity | 3200 | kg | |||
| Max Lifting Moment | 6.72 | T. M | |||
| Recommend Power | 14 | kW | |||
| Max Oil Flow of Hydraulic System | 25 | L/min | |||
| Max Pressure of Hydraulic System | 20 | MPa | |||
| Oil Tank Capacity | 30 | L | |||
| Rotation Angle | All Rotation | ||||
| Crane Weight | 1172/1316 | kg | |||
| Installation Space | 850 | mm | |||
| Choice of Chassis | EQ1092FJ1, EQ1092FJ, EQ1092F3GJ1, NKR77PLLWCJAY, DFL1120B, EQ1081GJ12D5, HFC1083K103R1D, EQ5121GFJ, | ||||
| SQ3.2SK1Q Lifting capability diagram | |||||
| Working radius (m) | 2.1 | 3.25 | 5.35 | ||
| Lifting capacity (kg) | 3200 | 1850 | 950 | ||
| SQ3.2SK2Q Lifting capability diagram | |||||
| Working radius (m) | 2.1 | 3.365 | 5.465 | ||
| Lifting capacity (kg) | 3200 | 1800 | 900 | ||
