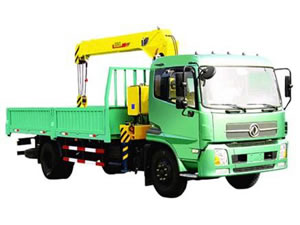

| Model | SQ5SK2Q/SQ5SK3Q | Unit | ||||
| Max Lifting Capacity | 5000 | kg | ||||
| Max Lifting Moment | 12.5 | T. M | ||||
| Recommend Power | 18 | kW | ||||
| Max Oil Flow of Hydraulic System | 32 | L/min | ||||
| Max Pressure of Hydraulic System | 18 | MPa | ||||
| Oil Tank Capacity | 90 | L | ||||
| Rotation Angle | All Rotation | |||||
| Crane Weight | 2074/2170 | kg | ||||
| Installation Space | 900 | mm | ||||
| Choice of Chassis | CA1140PK2L3EA80, DFL1140B, EQ1126KJ1, HFC1132KR1K3, LZ1120LAPT, EQ1141NBJ2, EQ5201GFJ6, EQ5201GFJ6, NXG1160D3ZAL1X |
|||||
| SQ2SK1Q Lifting capability diagram | ||||||
| Working radius(m) | 2.5 | 3.62 | 6.05 | 8.5 | ||
| Lifting capacity(kg) | 5000 | 2800 | 1500 | 1100 | ||
| SQ2SK2Q Lifting capability diagram | ||||||
| Working radius(m) | 2.5 | 3.62 | 6.05 | 8.5 | ||
| Lifting capacity(kg) | 5000 | 2800 | 1500 | 1100 | ||
