CDM853

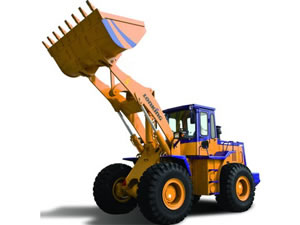

Wheel Loader CDM853

Large loader CDM853 is highlighted
Powerful Weichai Engine.
Short Turning Radius.
Anti-abrasion Integral Cutting Edge.
Heavy Load Driving System.

Description:
Wheel loader CDM853 is designed with Humanized Cab, whole casting driving axle shell, and reinforced frame connection. The loader is very efficient at work performance, more stable and impact resistant and it costs less in fuel consumption.

Parameter of Loader

Model Number CDM853
Bucket Capacity 3m3
Rated Load 5000kg
Rated Power 162kw
Operating Weight 15850kg
Traction Force (kN):  150±3
Breakout Force (kN):                 155±3
Engine:  Weichai WD10G220E11
Peak Torque (Nm/rpm):
Starting Voltage (V):
Drive Train:
Torque Converter: Single-stage, Single-turbine,3-element
Torque Ratio:
Transmission: Planetary power shift Transmission
Gear: 2F/1R
Pressure of Transmission (mpa):
Main Reducer:
Final Reducer:
23.5-25 L-3 16PR 23.5-25 L-3 16PR
Brake System:
Service Brake: Single Circuit Caliper, Dry Brake
Setting Pressure (mpa):
Parking & Emergency Brake: Flexible Shaft Controlled Caliper
Steering system type: Hydraulic Load Sensing
