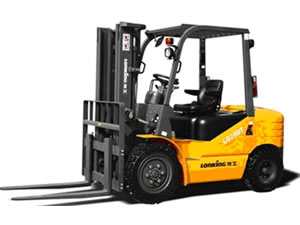

Diesel forklift LG20DT:
1. Advanced agronomical design.
2. Most rational position of center of gravity.
3. Wide view mast.
4. Large capacity radiator
5. Wire harness and waterproof plugging with latest developed technology.
Overall Data of diesel forklift LG20DT
Parameter
| Model Number | LG 20DT |
| Power Type | Diesel |
| Load capacity | 2000kg |
| Overall L×H×W | 3410×2079×1150 mm |
| Battery Capacity | 37kw |
| Engine: | XINCHAICY490BPG |
| Load center(mm) | 500 |
| STD Max lifting height(mm) | 3000 |
| Free lift height(mm) | 165 |
| Fork size(mm) | 1070×125×45 |
| Mast tilt angle(deg) | 6/12 |
| Front overhang (mm) | 480 |
| Min. turning radius (mm) | 2170 |
| Speed (load/unload) | |
| Max. Traveling speed (km/h) | 18.5/20 |
| Max. lifting speed (mm/s): | 460/430 |
| Max gradient (load/unload) (%): | 20 |
| Dead weight (kg) | 5440 |
| Tread (front/rear) (mm) | 1000/980 |
| Axle distance (mm) | 1700 |
| Tire: Front | 28×9-15-12PR |
| Rear | 18×7-8-14PR |
| Controller | CURTIS (ZAPI) |
