Construction Machinery
Parameter

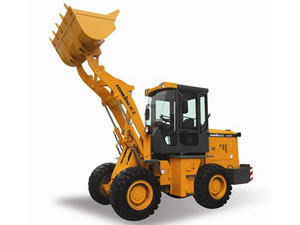

| Model Number of Compact loader | CDM818D | |
| Bucket Capacity | 1.05m3 | |
| Rated Load | 1800kg | |
| Rated Power | 63kw | |
| Operating Weight | 5600kg | |
| Traction Force (kN): | 53 | |
| Breakout Force (kN): | 52 | |
| Travel Speed (km/h): | Ⅰ | Ⅱ |
| Forward | 7.4 | 20.8 |
| Reverse | 7.2 | 20.4 |
| Engine: | YTO YT4B3-24 | |
| Peak Torque (Nm/rpm): | 235/1680-1800 | |
| Starting Voltage (V): | 24 | |
| Drive Train: | ||
| Torque Converter: | Single-stage, Single-turbine,3-element | |
| Torque Ratio: | 3.7 | |
| Transmission: | Fixed Shaft Hydraulic Shift Spur Gear | |
| Gear: | 2F/2R | |
| Pressure of Transmission (mpa): | 1.2-1.5 | |
| Main Reducer: | Spiral bevel, 1-stage Reduction | |
| Final Reducer: | Planetary Reduction | |
| Tire: | ||
| Brake System: | ||
| Service Brake: | ||
| Setting Pressure (mpa): | ||
| Parking & Emergency Brake: | Flexible Shaft Controlled Caliper | |
| Steering system type: | Hydraulic Load Sensing | |
