Construction Machinery
Features:
Standard equipments: Optional equipments
Shantui Transmission:Log Grapple(j)
Liangyu Axle:Light-duty Grapple(ZZ)
Standard Bucket
Parameter of Compact Wheel loader

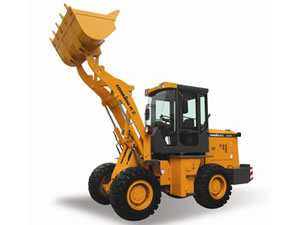

| Model Number | CDM825T | |
| Bucket Capacity | 1.4m3 | |
| Rated Load | 2500kg | |
| Rated Power | 75kw | |
| Operating Weight | 9050kg | |
| Traction Force (kN): | 88 | |
| Breakout Force (kN): | 110 | |
| Travel Speed (km/h): | Ⅰ | Ⅱ |
| Forward | ||
| Reverse | ||
| Engine: | YUCHAI YC4B105Z-T21 | |
| Peak Torque (Nm/rpm): | ||
| Starting Voltage (V): | ||
| Drive Train: | ||
| Torque Converter: | Single-stage, Single-turbine,3-element | |
| Torque Ratio: | 4.2 | |
| Transmission: | Fixed Shaft Hydraulic Shift Spur Gear | |
| Gear: | 4F/2R | |
| Pressure of Transmission (mpa): | 1.2-1.5 | |
| Main Reducer: | Spiral bevel, 1-stage Reduction | |
| Final Reducer: | Planetary Reduction | |
| Tire: | 17.5-25 | |
| Brake System: | ||
| Service Brake: | Air drive, four wheel brake (dry) | |
| Setting Pressure (mpa): | 0.78 | |
| Parking & Emergency Brake: | Flexible Shaft Controlled Caliper | |
| Steering system type: | Hydraulic Load Sensing | |
