CDM816D

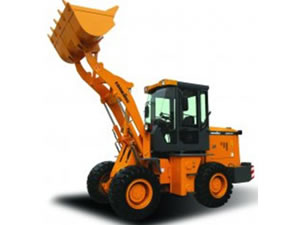

Wheel loader CDM816D

Features:
Powerful YTO Engine
Hydraulic Transmission&Torque Converter
Reliable Powertrain
Optimized Structure Design
Description of Compact Wheel Loader
Compact Loader CDM 816D is equipped with Shantui hydraulic torque converter, which is stable in quality and easy for maintenance and the loader is configured with transmission box of double variable system. Moreover, the frame of is overall increased and the wheelbase is appropriately lengthened. Finally, the bucket of is designed for harsh mining which of high strength and wear resistance.

Parameter of Compact Wheel Loader

Model Number YTO YT4A2-24
Bucket Capacity 0.95m3
Rated Load 1600kg
Rated Power 55kw
Operating Weight 5500kg
Traction Force (kN):  50
Breakout Force (kN):                 52
Travel Speed (km/h):
                          Forward 7.4 20.8
                          Reverse 7.2 20.4
Engine:  Changchai 490B
Peak Torque (Nm/rpm): 235/1680-1800
Starting Voltage (V): 24
Drive Train:
Torque Converter: Single-stage, Single-turbine,3-element
Torque Ratio: 3.7
Transmission: Fixed Shaft Hydraulic Shift Spur Gear
Gear: 2F/2R
Pressure of Transmission (mpa): 1.2-1.5
Main Reducer: Spiral bevel, 1-stage Reduction
Final Reducer: Planetary Reduction
Tire:
Brake System:
Service Brake:
Setting Pressure (mpa):
Parking & Emergency Brake: Flexible Shaft Controlled Caliper
Steering system type: Hydraulic Load Sensing
