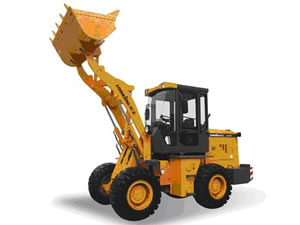

CDM833

Wheel loader

Wheel loader CDM833 is featured:
Hydraulic steering system
Powerful Weichai Engine.
Anti-abrasion Integral Cutting Edge.
Description:
CDM833 Wheel loader is designed with long wheel base, and it is symmetrical in layout of front and rear axles. It is of high configuration engine which is low in oil consumption and high dumping height and distance. Hydraulic steering and double pump confluence are put to use in this wheel loader, moreover, the loader is characterized by its single arm design.

Parameter of Wheel loader

Model Number CDM833
Bucket Capacity 1.7m3
Rated Load 3000kg
Rated Power 92kw
Operating Weight 10300kg
Traction Force (kN):  97±3
Breakout Force (kN):                 100±3
Travel Speed (km/h):
                          Forward 6.5 12.0 32.0
                          Reverse 6.8 12.5 33.5
Engine:  WEICHAI TD226B
Peak Torque (Nm/rpm): 292-305/1400-1600
Starting Voltage (V): 24
Drive Train:
Torque Converter: Single-stage, Single-turbine,3-element
Torque Ratio:
Transmission: Countershaft power shift Transmission
Gear: 3F/3R
Pressure of Transmission (mpa):
Main Reducer:
Final Reducer:
Tire: 17.5-25 L-3 12PR
Brake System:
Service Brake: Single Circuit Caliper, Dry Brake
Setting Pressure (mpa):
Parking & Emergency Brake: Flexible Shaft Controlled Caliper
Steering system type: Hydraulic Load Sensing
Hydraulic System
Lift Cylinder-bore×Stroke(mm):                          2-Φ125×784
Tilt Cylinder-bore×Stroke (mm): 1-Φ140×553
Model of Implement Pump: Gear Pump
Flow rate (L/min/RPM): 176/2200
System Pressure (mpa): 16
