CDM835E

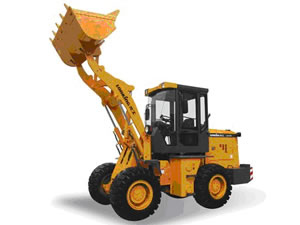

Wheel loader CDM835E

Large loader CDM835E features
Powerful DF Cummins Engine.
Pilot Control System.
Automatic Leveling.
ROPS/FOPS Cabin with Panoramic View.
Easy maintenance.

Description:
CDM 835E Wheel loader is configured with Cummins engine of Euro 2 emission criterion. And the overall design of the wheel loader is optimized by computer-assisted three-dimensional simulation. To guarantee the safety of users, net defense is specially added to the tank windshield. Hydraulic steering of the loader is very flexible, thus work efficiency of the wheel loader is greatly improved.

Parameter of loader

Model Number CDM835E
Bucket Capacity 1.8m3
Rated Load 3500kg
Rated Power 97kw
Operating Weight 11620kg
Traction Force (kN):  97±3
Breakout Force (kN):                 100±3
Travel Speed (km/h):
                          Forward 6.5 12.0 32.0
                          Reverse 6.8 12.5 33.5
Engine:  DF CUMMINS 6BT5.9-C130
Peak Torque (Nm/rpm):
Starting Voltage (V):
Drive Train:
Torque Converter: Single-stage, Single-turbine,3-element
Torque Ratio:
Transmission: Countershaft power shift Transmission
Gear: 3F/3R
Pressure of Transmission (mpa):
Main Reducer: Spiral bevel,1-stage Reduction
Final Reducer: Planetary Reduction
Tire: 17.5-25 L-3 12PR
Brake System:
Service Brake: Single Circuit Caliper, Dry Brake
Setting Pressure (mpa):
Parking & Emergency Brake: Flexible Shaft Controlled Caliper
Steering system type: Hydraulic Load Sensing
