CDM843

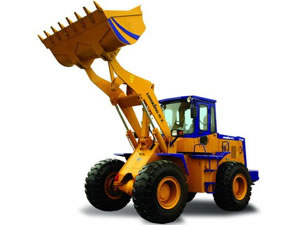

CDM843 Wheel loader

Wheel loader CDM843 highlights:
Pilot Control System
Powerful Weichai Engine
Hydraulic Load Sensing Control System
Anti-abrasion Integral Cutting
Automatic Leveling

CDM 843 is featured:
1. High dumping height and large dumping distance.
2. Long wheelbase design.
3. Center arranged front and rear axles
4. High-configuration and low-consumption Engine.
5. Hydraulic steering, double pump confluence.
6. Plate frame structure.
7. Single swinging arm design

Parameter of Wheel loader

Model Number CDM843
Bucket Capacity 2.3m3
Rated Load 4000kg
Rated Power 129kw
Operating Weight 13000kg
Traction Force (kN):  120±3
Breakout Force (kN):                 115±3
Travel Speed (km/h):
                          Forward 11.5 36.0
                          Reverse 16.0
Engine:  WEICHAI TD226B-6G
Peak Torque (Nm/rpm):
Starting Voltage (V):
Drive Train:
Torque Converter: Single-stage, Single-turbine,3-element
Torque Ratio:
Transmission: Planetary power shift Transmission
Gear: 2F/1R
Pressure of Transmission (mpa):
Main Reducer: Spiral bevel,1-stage Reduction
Final Reducer: Planetary Reduction
Tire: 120.5-25 L-3 16PR
Brake System:
Service Brake: Single Circuit Caliper, Dry Brake
Setting Pressure (mpa):
Parking & Emergency Brake: Flexible Shaft Controlled Caliper
Steering system type: Hydraulic Load Sensing
Steering Pump:                              Gear Pump
Hydraulic System
